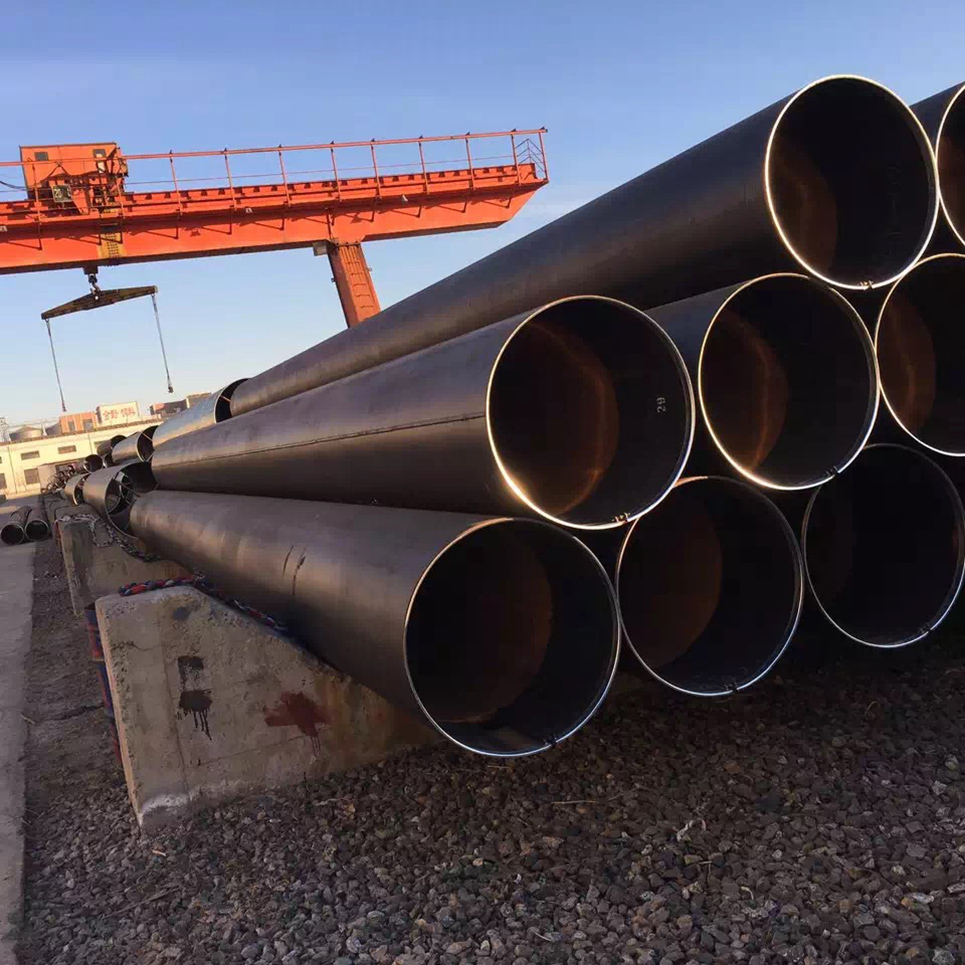

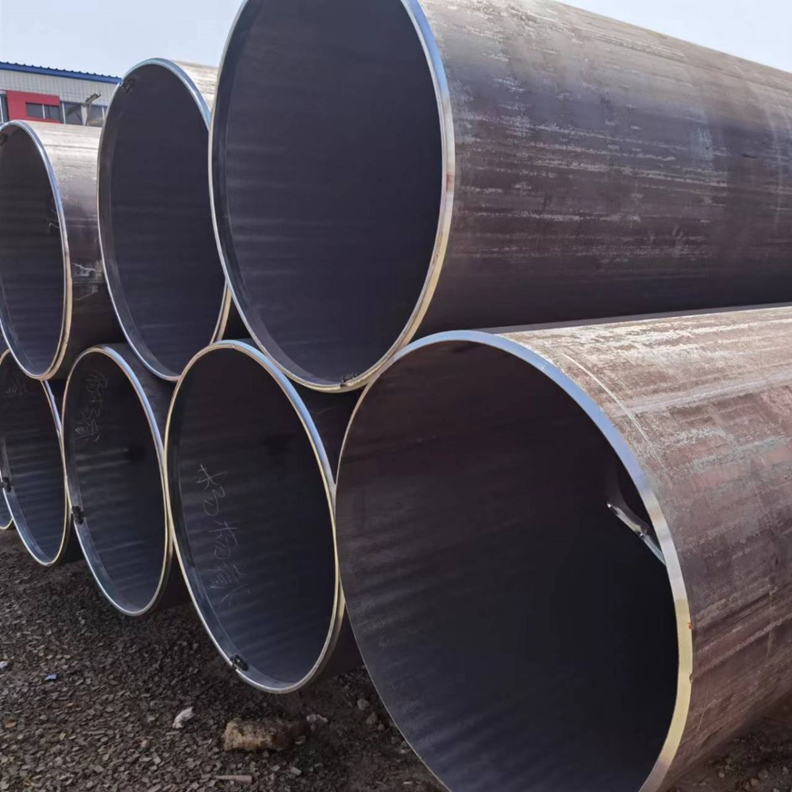

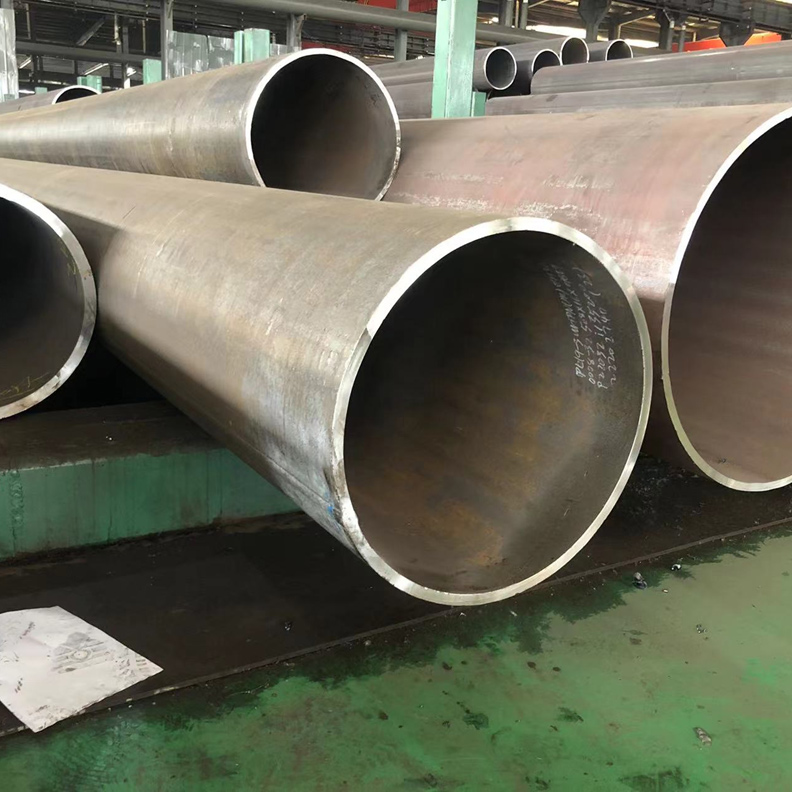

LSAW Welded Pipe

Grades: A/ B,X42-X80,L210-L255,PSL1&PSL2O

Outside Diameter: Φ356mm-Φ1626mm (14"64")

Wall thickness: 6.4mm-32mm

Length: Φ3.0m-Φ12.5m

Standard: API 5L, GB/T9711, EN10208,IS03183 etc

Uses:Line pipe can meet all requirements of high-pressure transmission pipeline for natural gas and petroleum and can be used in on-shore and off-shore oil and gas transmission

Xunhong steel co.,ltd can provide LSAW (Longitudinal double submerge arc welding) carbon steel pipe of various standards and grades, passed lSO9001, SGS and other certificates, accept third-party testing, has complete testing and testing facilities from product development,raw material supply, production process management, etc. in accordance with international quality The system standards are standardized to provide customers with satistactory pre-sale, in-sale and after sale services, Feel free to contact us anytime

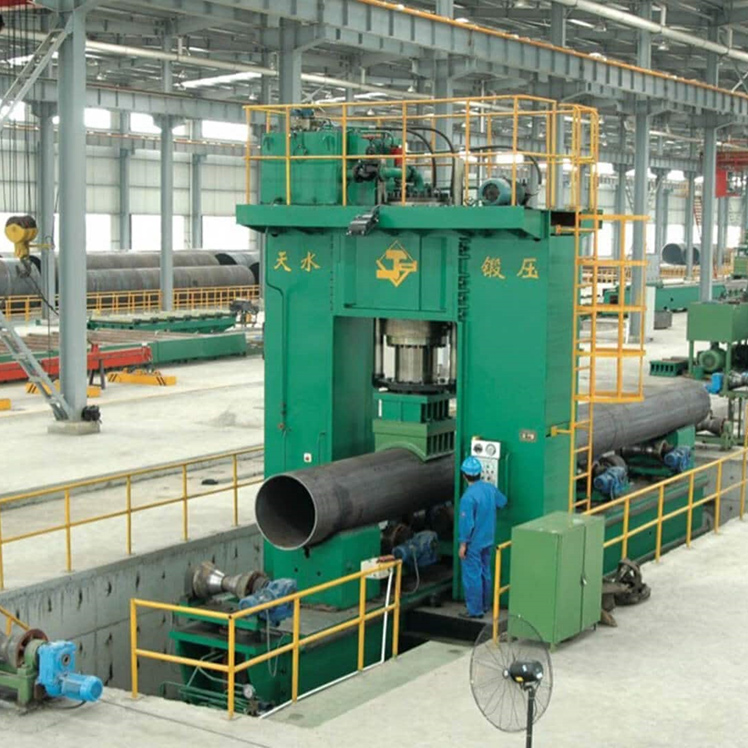

LSAW (Longitudinal double submerge arc welding) carbon steel pipe is a type of SAW pipe made of steel plates that were hot rolled by JCOE forming technology. JCOE technology represents the shaping and forming processes involved during manufacturing as well as the inner and outer weiding and cold expansion carried out after welding

Usage	O.D.(mm)	W.T.(mm)	Length(m)
Oil & gas pipeline	406-1524(16"- 60")	6-40 (1/4"- 1.57")	8-12.1
for Construction(Pipe Piles)	350-1600(14"- 63")	6-60(1/4"- 2.36")	6-12
Roller pipe	1200-3800(47.24"- 150")	12-120 (1/2"- 4.7")	<=3.2
Addition to above specification, the pipes can be produced according to customer's requirements

Tolerance of Outside Diameter and Wall Thickness

Types	Standard
	SY/T5040-2000	SY/T5037-2000	SY/T9711.1-1977	ASTMA252	AWWA C2008	API 5L PSL1
Tube end OD deviation	±0.5% D	±0.5%D	-0.79mm ～+2.38mm	<±0.1%T	<±0.1%T	±1.6mm
Wall thickness	±10.0%T	D<508mm.±12.5%T	-8%T～+19.5%T	<-12.5%T	-8%T～ +19.5%T	5.0mm
		D>508mm,±10.0%T				T＞15.0mm,±1.5mm

O.D.		W.T.							Length(m)
Inch	mm	Min.Yield Strength(Mpa)
Inch	mm	245(B)	290(X42)	360(X52)	415(X60)	450(X65)	485(X70)	555(X80)
16	406	6.0-14.0	6.0-13.0	6.0-12.0	6.0-11.0	6.0-10.5	6.0-10.0	6.0-9.0	6.0-12.3
18	457	6.0-15.0	6.0-14.0	6.0-13.0	6.0-12.0	6.0-11.5	6.0-11.0	6.0-10.0	6.0-12.3
20	508	6.0-16.0	6.0-15.0	6.0-14.0	6.0-13.0	6.0-12.5	6.0-12.0	6.0-11.0	6.0-12.3
22	559	6.0-17.0	6.0-16.0	6.0-15.0	6.0-14.0	6.0-13.5	6.0-13.0	6.0-12.0	6.0-12.3
24	610	6.0-18.0	6.0-17.0	6.0-16.0	6.0-15.0	6.0-14.5	6.0-14.0	6.0-13.0	6.0-12.3
26	660	6.0-19.0	6.0-18.0	6.0-17.0	6.0-16.0	6.0-15.0	6.0-15.0	6.0-14.0	6.0-12.3
28	711	6.0-20.0	6.0-19.0	6.0-18.0	6.0-17.0	6.0-16.5	6.0-16.0	6.0-15.0	6.0-12.3
30	762	7.0-21.0	7.0-20.0	7.0-19.0	7.0-18.0	7.0-17.5	7.0-17.0	7.0-16.0	6.0-12.3
32	813	7.0-22.0	7.0-21.0	7.0-20.0	7.0-19.0	7.0-18.5	7.0-18.0	7.0-17.0	6.0-12.3
34	864	7.0-23.0	7.0-22.0	7.0-21.0	7.0-20.0	7.0-19.5	7.0-19.0	7.0-18.0	6.0-12.3
36	914	8.0-24.0	8.0-23.0	8.0-22.0	8.0-21.0	8.0-20.5	8.0-20.0	8.0-19.0	6.0-12.3
38	965	8.0-25.0	8.0-24.0	8.0-23.0	8.0-22.0	8.0-21.5	8.0-21.0	8.0-20.0	6.0-12.3
40	1016	8.0-26.0	8.0-25.0	8.0-24.0	8.0-23.0	8.0-22.5	8.0-22.0	8.0-21.0	6.0-12.3
42	1067	8.0-26.0	8.0-25.0	8.0-24.0	8.0-23.0	8.0-22.5	8.0-22.0	8.0-21.0	6.0-12.3
44	1118	9.0-27.0	9.0-26.0	9.0-24.5	9.0-23.5	9.0-22.8	9.0-22.0	9.0-21.0	6.0-12.3
46	1168	9.0-27.0	9.0-26.0	9.0-24.0	9.0-23.5	9.0-22.8	9.0-22.0	9.0-21.0	6.0-12.3
48	1219	9.0-28.0	9.0-27.0	9.0-25.4	9.0-24.0	9.0-23.5	9.0-23.0	9.0-22.0	6.0-12.3
52	1321	9.0-28.0	9.0-27.0	9.0-25.4	9.0-24.2	9.0-23.5	9.0-23.0	9.0-22.0	6.0-12.3
56	1422	10.0-29.0	10.0-28.0	10.0-26.0	10.0-24.5	10.0-23.8	10.0-23.0	10.0-22.0	6.0-12.3
60	1524	10.0-29.0	10.0-28.0	10.0-26.0	10.0-24.5	10.0-23.8	10.0-23.0	10.0-22.0	6.0-12.3
64	1626	10.0-30.0	10.0-29.0	10.0-27.0	10.0-25.4	10.0-24.8	10.0-24.0	10.0-23.0	6.0-12.3
68	1727	10.0-30.0	10.0-29.0	10.0-27.0	10.0-25.4	10.0-24.8	10.0-24.0	10.0-23.0	6.0-12.3
72	1829	10.0-30.0	10.0-29.0	10.0-27.0	10.0-25.4	10.0-24.8	10.0-24.0	10.0-23.0	6.0-12.3

Standard:

ASTM 53

API Spec 5L

ASTM A252-89,EN10217, EN10219

Steel grades:

API 5L: GR A,GR B, X42, X46, X56,X60, X65, X70

ASTM A252 GR 1, GR 2, GR 3

ASTM A53: GR A, GR B, GR C, GR D

BS 4360: Grade 43, Grade 50

EN: S275,S275JR,S355JRH，S355J2H

Chemical Composition and Mechanical Properties

Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
Standard	Grade	C	Mn	Si	S	P	Yield Strength (Mpa)	Tensile Strength (Mpa)
GB/T700-2006	A	0.22	1.4	0.35	0.05	0.045	235	370
	B	0.2	1.4	0.35	0.045	0.045	235	370
	C	0.17	1.4	0.35	0.04	0.04	235	370
	D	0.17	1.4	0.35	0.035	0.035	235	370
GB/T1591-2009	A	0.2	1.7	0.5	0.035	0.035	345	470
	B	0.2	1.7	0.5	0.03	0.03	345	470
	C	0.2	1.7	0.5	0.03	0.03	345	470
BS En10025	S235JR	0.17	1.4	-	0.035	0.035	235	360
	S275JR	0.21	1.5	-	0.035	0.035	275	410
	S355JR	0.24	1.6	-	0.035	0.035	355	470
DIN 17100	ST37-2	0.2	-	-	0.05	0.05	225	340
	ST44-2	0.21	-	-	0.05	0.05	265	410
	ST52-3	0.2	1.6	0.55	0.04	0.04	345	490
JIS G3101	SS400	-	-	-	0.05	0.05	235	400
JIS G3101	SS490	-	-	-	0.05	0.05	275	490
API 5L PSL1	A	0.22	0.9	-	0.03	0.03	210	335
	B	0.26	1.2	-	0.03	0.03	245	415
	X42	0.26	1.3	-	0.03	0.03	290	415
	X46	0.26	1.4	-	0.03	0.03	320	435
	X52	0.26	1.4	-	0.03	0.03	360	460
	X56	0.26	1.1	-	0.03	0.03	390	490
	X60	0.26	1.4	-	0.03	0.03	415	520
	X65	0.26	1.45	-	0.03	0.03	450	535
	X70	0.26	1.65	-	0.03	0.03	585	570
