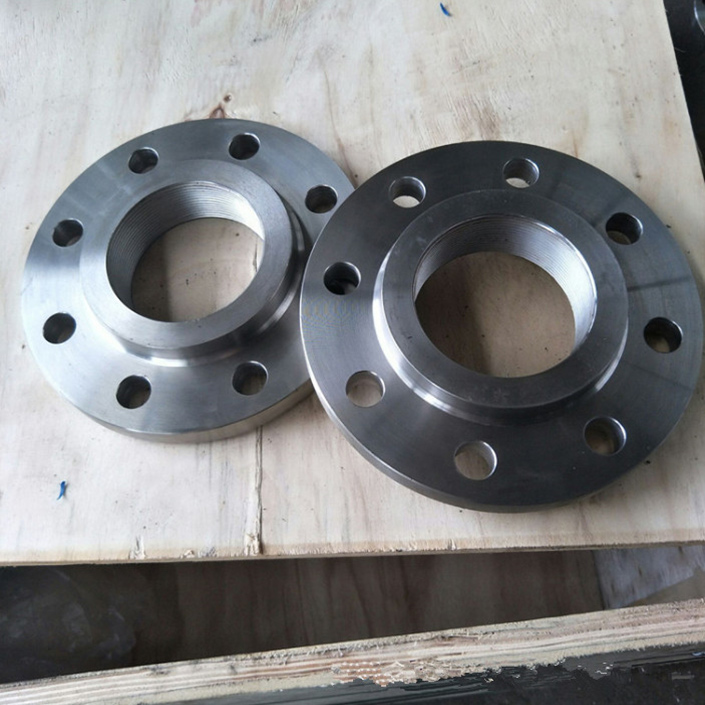

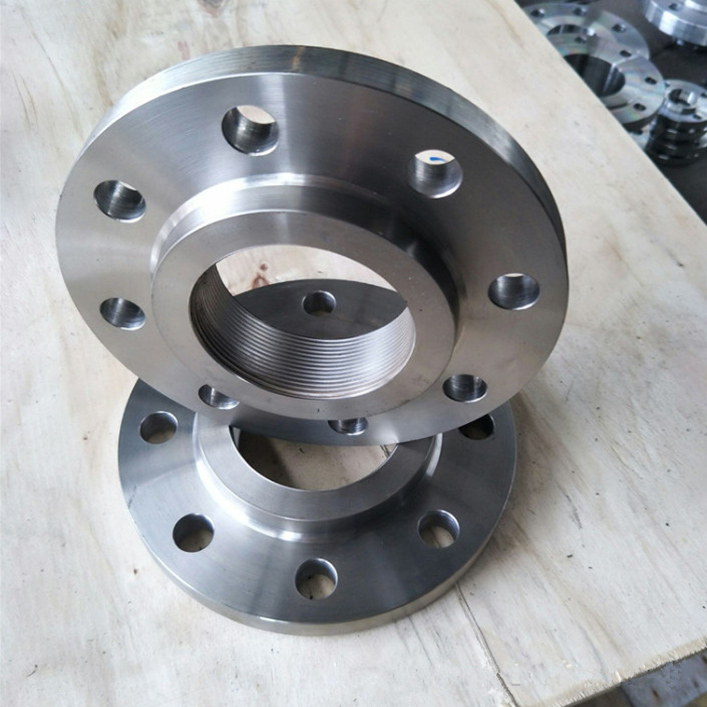

DIN Screwed Flange

Screwed Flange is similar to slip-on flange. However, it has a screw thread of female screw on the bore of the flange. The most important advantages are that the threaded flange can be bonded without welding and used in highly explosive areas with danger or low-pressure process and welding at toom temperature.


Standard:

DIN2565 /2566 /2567 /2568 /2569

Size:

DN10-DN150

Pressure class:

PN6、PN10、PN16、PN25、PN40、PN64、PN100

Material:

Carbon steel: ST37.2、S235JR、C22.8

Stainless steel: ASTM F304/304L、ASTM F316/316L、F321

Anti-rust treatment of carbon steel flanges:

anti-rust oil, yellow paint, black paint, electric galvanized, hot-dip galvanized
