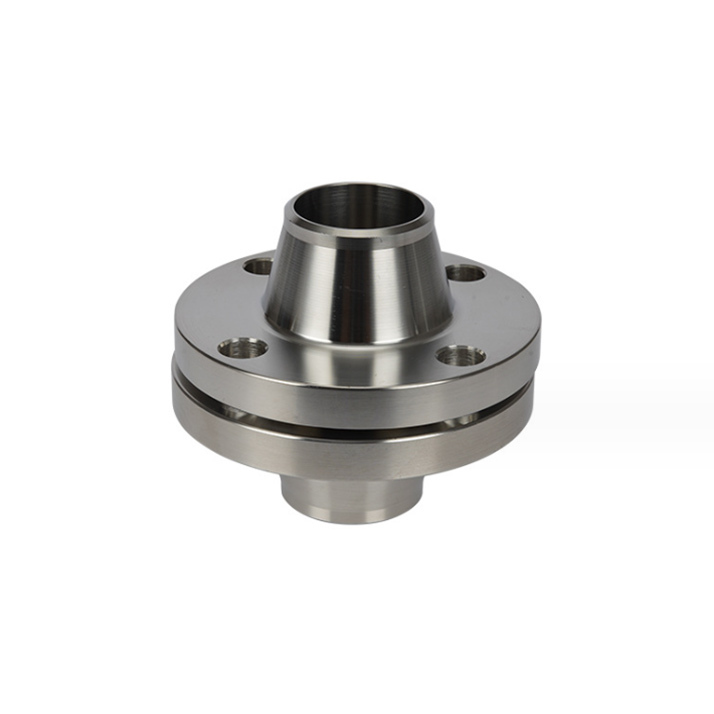

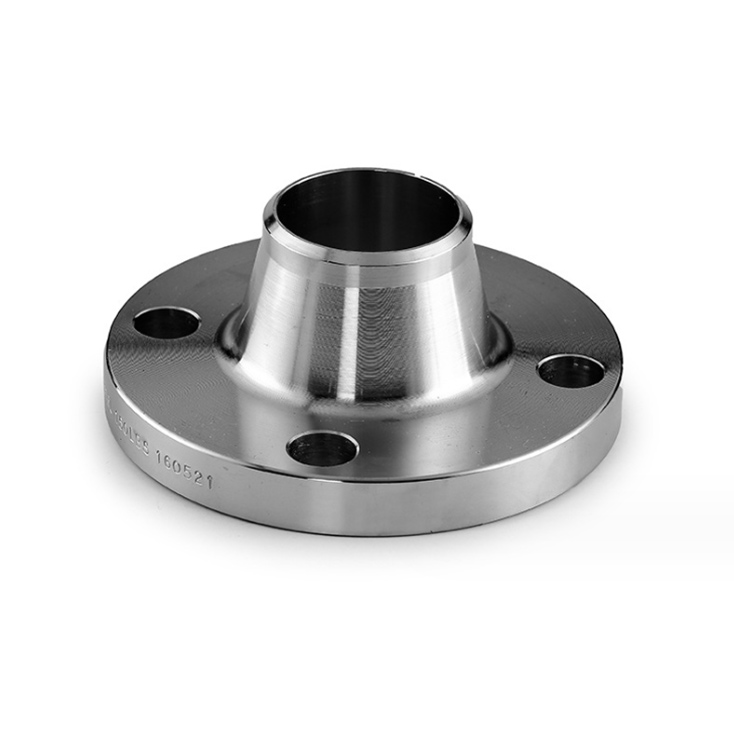

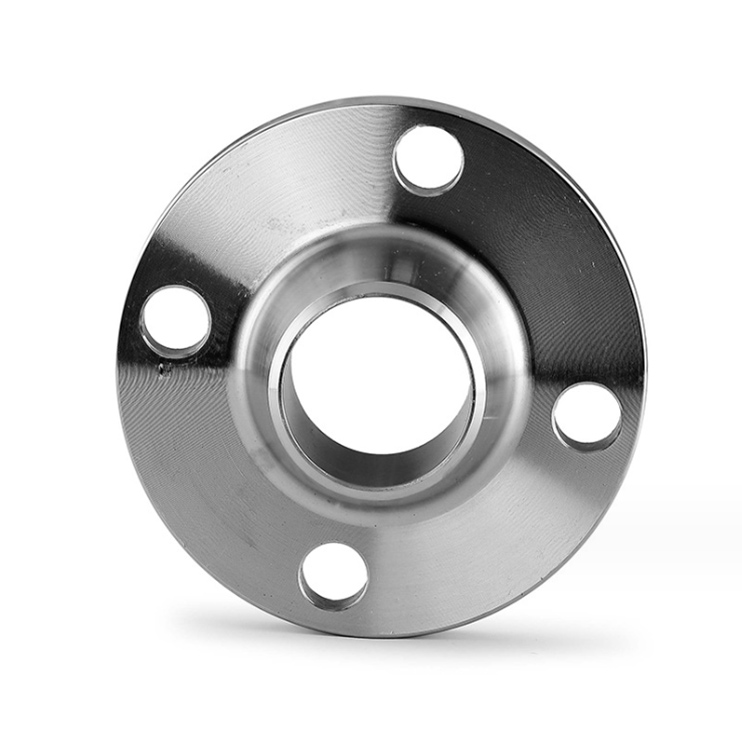

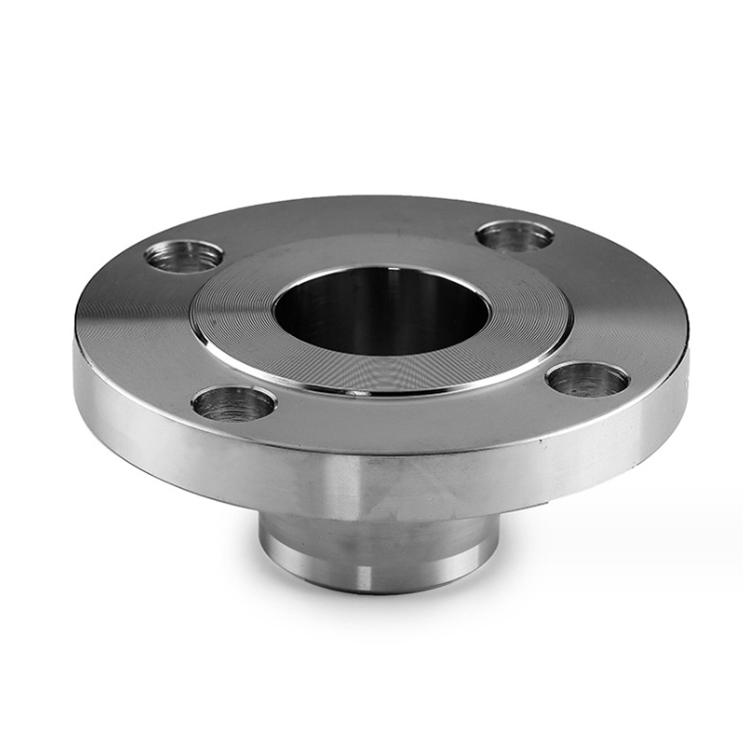

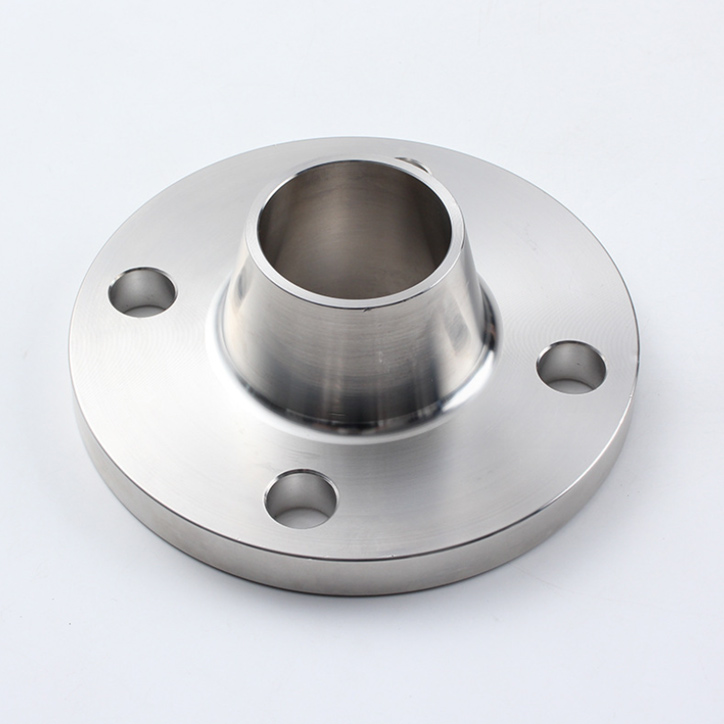

Welding Neck Flange
Welding Neck Flange is generally referred to as a "high hub" flange. It is designed to transfer pressure to the pipe and reduce high pressure at the base of the flange. Welding Neck Flange is a butt-welding flange with the best design among currently available flanges because of its unique structure.
Standard: | ANSI B16.5, ASME B16.47 SERIES A (MSS SP44)/ASME B16.47 SERIES B (API605) |
Size: | 1/2"- 60" |
Pressure class: | 150LB、 300LB、 600LB、 900LB、 1500LB、 2500LB |
Sealing type: | Flat Face(FF)、 Raised Face (RF)、 Ring Type Joint (RTJ) |
Material: | Carbon steel: ASTM A105/A105N, A350 LF2 |
Stainless steel: ASTM A182 F304/304L、F316/316L、F321 | |

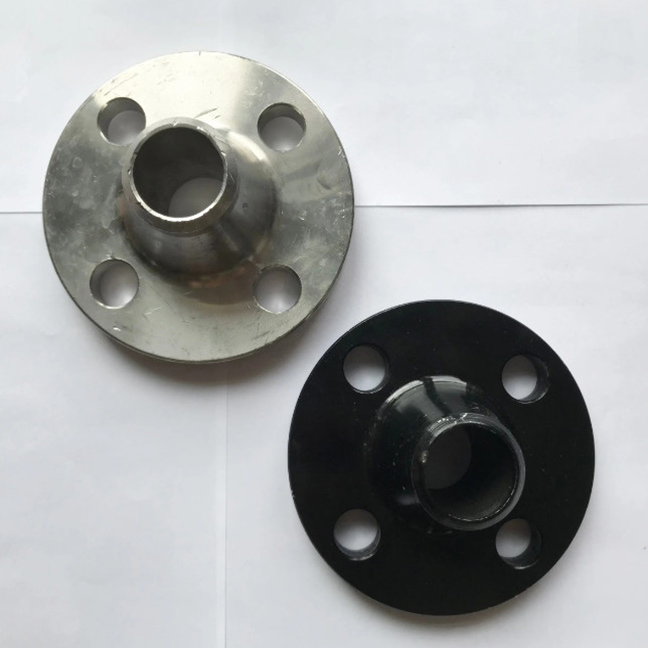

Anti-rust treatment of carbon steel flanges: | anti-rust oil, black paint, electric galvanized, hot-dip galvanized |
