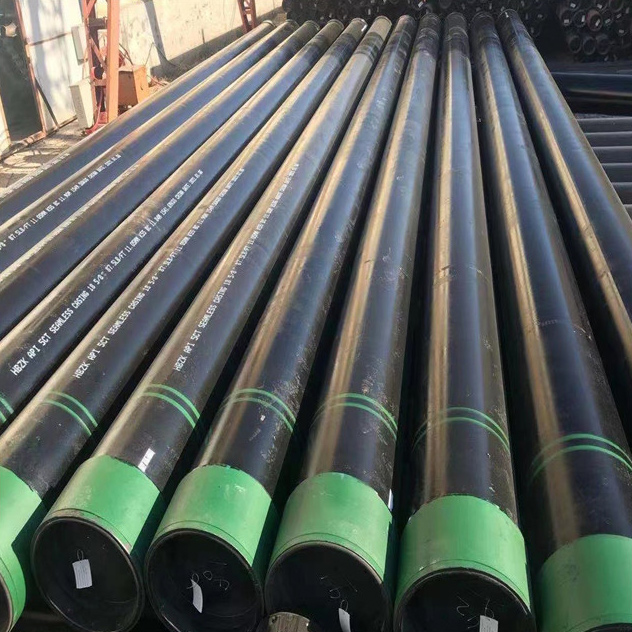

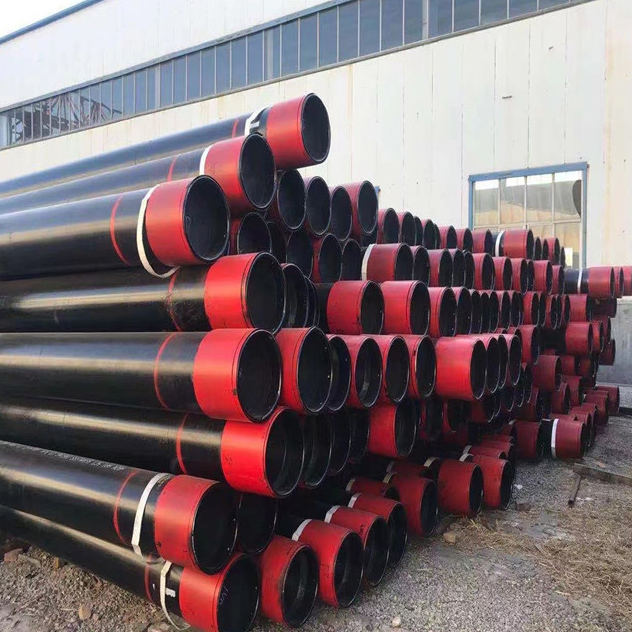

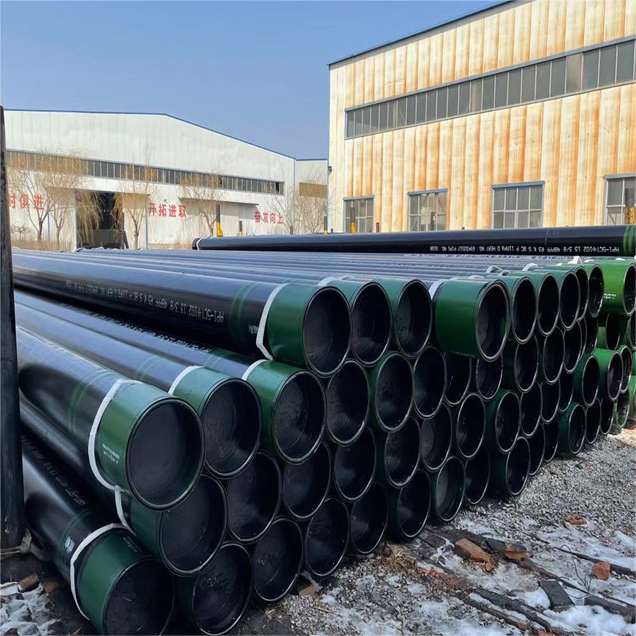

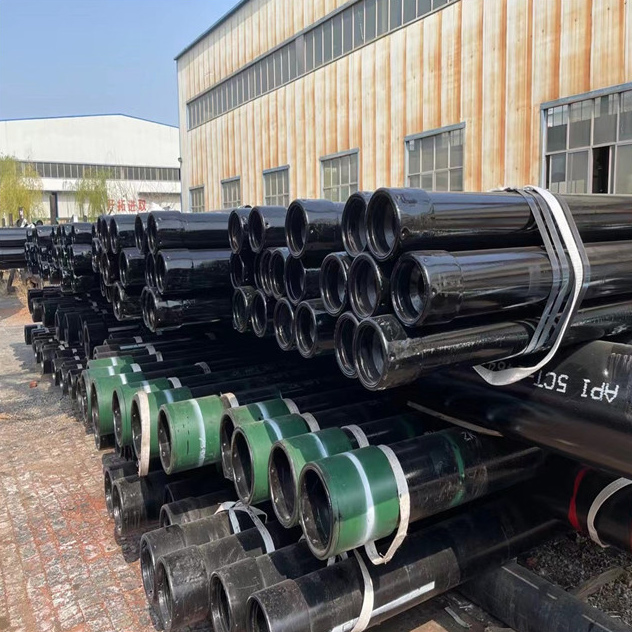

API 5CT Tubing

Dimension:OD 48.26-114.3mm

WT:318-16mm

Grade:JSS,N80-1,N80-Q, LS0-1, L80-9Cr,L80-1,C90,T95,C95,P110

Thread types:NUE,EUE etc.

Standards and Technical Conditions for Supply:AP Spec 5CT - Specification 5CT/ISO 11960.Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells， Tubing are used as pipe to transport crude oil or natural gas from layer of the oil to surface, can hear better pressure during oil or gas production, and have smaller diameters.

Label				OD(mm)	WT(mm)	Type of End-Finish
	NU T&C	EU T&C	IJ	OD(mm)	WT(mm)	H40	J55	L80	N80	C90	T95	P110
1.9	2.75	2.9	2.76	48.26	3.68	PNUI	PNUI	PNUI	PNUI	PNUI	PNUI	-
1.9	3.65	3.73	-	48.26	5.08	PU	PU	PU	PU	PU	PU	PU
1.9	4.42	-	-	48.26	6.35	-	-	P	-	P	P	-
2 3/8	4	-	-	60.32	4.24	PU	PU	PN	PN	PN	PN	-
2 3/8	4.6	4.7	-	60.32	4.83	PNU	PNU	PNU	PNU	PNU	PNU	PNU
2 3/8	5.8	5.95	-	60.32	6.45	-	-	PNU	PNU	PNU	PNU	PNU
2 3/8	6.6	-	-	60.32	7.49	-	-	P	-	P	P	-
2 3/8	7.35	7.45	-	60.32	8.53	-	-	PU	-	PU	PU	-
2 7/8	6.4	6.5	-	73.02	5.51	PNU	PNU	PNU	PNU	PNU	PNU	PNU
2 7/8	7.8	7.9	-	73.02	7.01	-	-	PNU	PNU	PNU	PNU	PNU
2 7/8	8.6	8.7	-	73.02	7.82	-	-	PNU	PNU	PNU	PNU	PNU
2 7/8	9.35	9.45	-	73.02	8.64	-	-	PU	-	PU	PU	-
2 7/8	10.5	-	-	73.02	9.96	-	-	P	-	P	P	-
3 1/2	7.7	-	-	88.9	5.49	PN	PN	PN	PN	PN	PN	-
3 1/2	9.2	9.3	-	88.9	6.45	PNU	PNU	PNU	PNU	PNU	PNU	PNU
3 1/2	10.2	-	-	88.9	7.34	PN	PN	PN	PN	PN	PN	-
3 1/2	12.7	12.95	-	88.9	9.52	-	-	PNU	PNU	PNU	PNU	PNU
3 1/2	14.3	-	-	88.9	10.92	-	-	P	-	P	P	-
3 1/2	15.5	-	-	88.9	12.09	-	-	P	-	P	P	-
4	9.5	-	-	101.6	5.74	PN	PN	PN	PN	PN	PN	-
4	10.7	11	-	101.6	6.65	PU	PU	PU	PU	PU	PU	-
4	13.2	-	-	101.6	8.38	-	-	P	-	P	P	-
4	16.1	-	-	101.6	10.54	-	-	P	-	P	P	-
4 1/2	12.6	12.75	-	114.3	6.88	PNU	PNU	PNU	PNU	PNU	PNU	-
4 1/2	15.2	-	-	114.3	8.56	-	-	P	-	P	P	-

API Spec 5CT-Specification 5CT/ISO 11960,Specification for casting and Tubing,Eighth Edition,Petroleum and natural gas industires-steel pipes for use as casing or tubing for wells

Grade	Type	Total elongation under load %	Yield Strength Mpa		Tensile strength min Mpa	Hardness		Specified wall thickness mm	Allowable hardness variation
Grade	Type	Total elongation under load %	Min	Max	Tensile strength min Mpa	HRC	HBW	Specified wall thickness mm	Allowable hardness variation
J55	-	0.5	379	552	517	-	-	-	-
K55	-	0.5	379	552	655	-	-	-	-
N80	1	0.5	552	758	689	-	-	-	-
N80	Q	0.5	552	758	689	-	-	-	-
M65		0.5	448	586	586	22	235	-	-
L80	1	0.5	552	655	655	23	241	-	-
	9Cr	0.5	552	655	655	23	241	-	-
	13Cr	0.5	552	655	655	23	241	-	-
C90	1.2	0.5	621	724	689	25.4	255	≤12.70	3.0
	1.2	0.5	621	724	689	25.4	255	12.71-19.04	4.0
	1.2	0.5	621	724	689	25.4	255	19.05-25.39	5.0
	1.2	0.5	621	724	689	25.4	255	≥25.4	6.0
C95	-	0.5	655	724	724	-	-	-	-
T95	1.2	0.5	655	724	724	25.4	255	≤12.70	3.0
	1.2	0.5	655	724	724	25.4	255	12.71-19.04	4.0
	1.2	0.5	655	724	724	25.4	255	19.05-25.39	5.0
	1.2	0.5	655	724	724	25.4	255	≥25.4	6.0
P110	-	0.6	758	965	862	-	-	-	-
Q125	All	0.65	862	1034	931	b	-	≤12.70	3.0
	All	0.65	862	1034	931	b	-	12.71-19.04	4.0
	All	0.65	862	1034	931	b	-	≥19.05	5.0

Chemical Composition

Standard

Grade

Composition(%)

Als

API SPEC 5CT

J55

0.34-0.39

0.20-0.35

1.25-1.50

≤0.020

≤0.015

≤0.15

≤0.20

≤0.020

K55

N80

0.34-0.38

0.20-0.35

1.45-1.70

≤0.020

≤0.015

≤0.15

0.11-0.16

≤0.20

L80

0.15-0.22

≤1.00

0.25-1.00

≤0.020

≤0.010

12.0-14.0

≤0.20

P110

0.26-0.35

0.17-0.37

0.40-070

≤0.020

≤0.010

0.80-1.10

≤0.20

0.15-0.25

≤0.08

≤0.20
