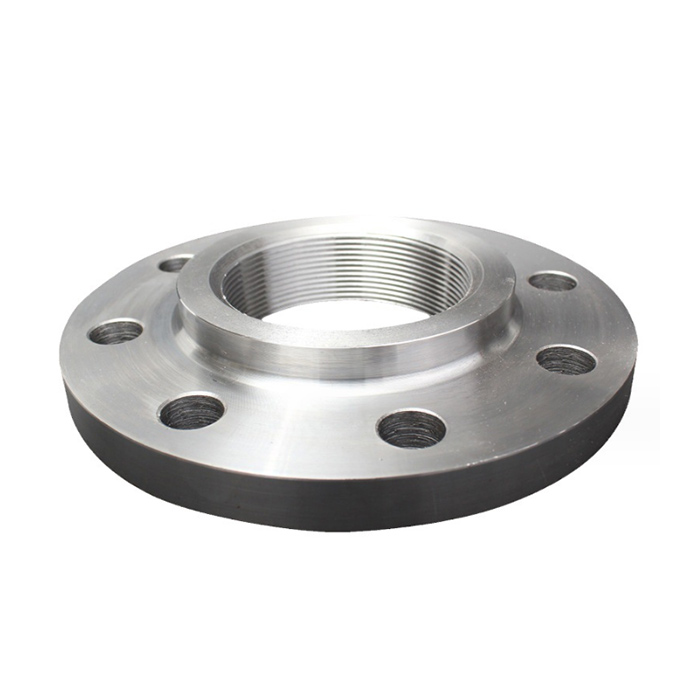

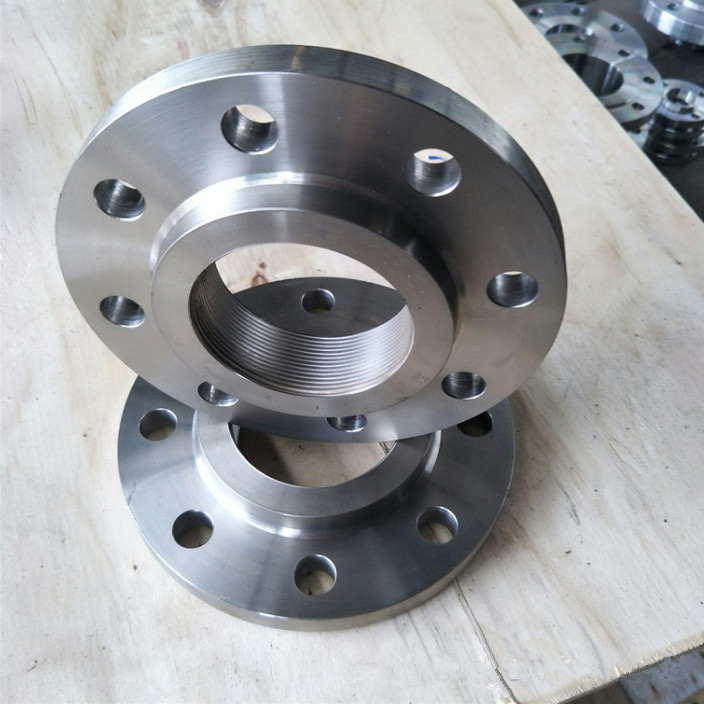

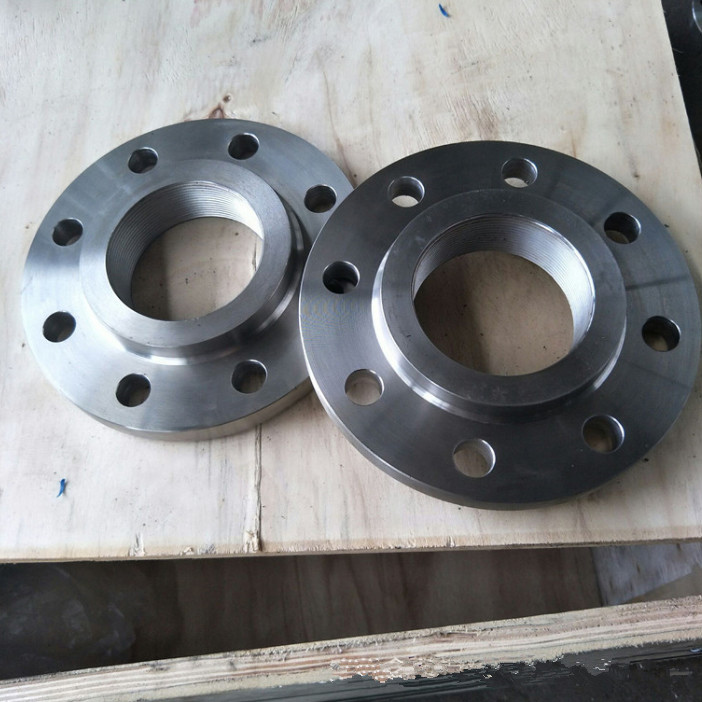

TYPE 13 Hubbed Threaded Flange

Threaded Flange is similar to slip-on flange. However, it has a screw thread of female screw on the bore of the flange. The most important advantages are that the threaded flange can be bonded without welding and used in highly explosive areas with danger or low-pressure process and welding at toom temperature.


Standard:

EN1092-1

Size:

 DN15-DN600

Pressure class:

PN6、 PN10、 PN16、 PN25、 PN40、 PN63、 PN100

Material:

Carbon steel: P235GH, P245GH, P250GH, P365GH, P280GH

Stainless steel: ASTM F304/304L、ASTM F316/316L、F321

Anti-rust treatment of carbon steel flanges:

anti-rust oil, yellow paint, black paint, electric galvanized, hot-dip galvanized
