Concrete Coating(CWC)Pipe
Pipe diameter: Φ168-1422mm(6-56 inch).
Coating thickness: 35-150mm,Coating density: 2240-3400kg/m3

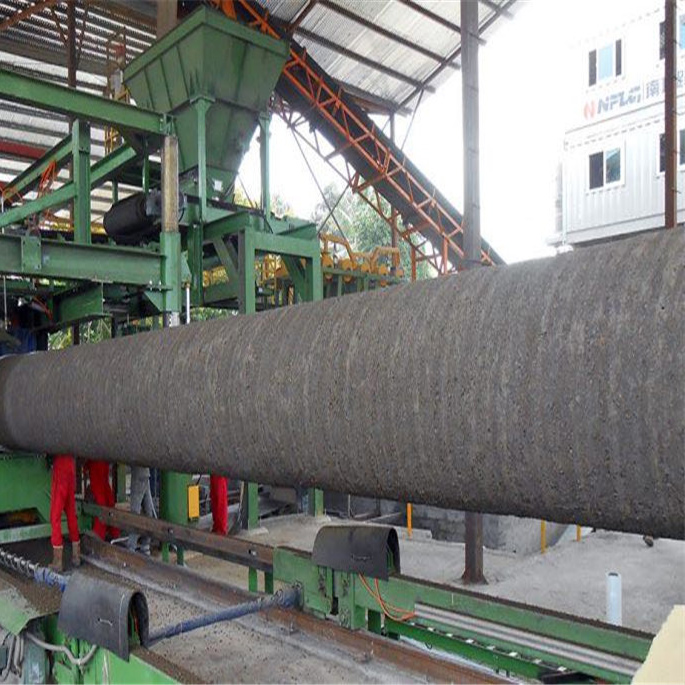

Concrete coating system is designed to provide negative buoyancy and mechanical protection for pipelines in subsea and wet environments. Compression Coat uses a side-wrap application process making it ideal for both small and large diameter pipelines. The product is available in various thicknesses and densities and can be applied over FBE or 3LPE coating
Xunhong steel co.,ltd can provide concrete coating pipe of various standards and grades, passed IS09001, SGS and other certificates, accept third-party testing, has complete testing and testing facilities, from product development, raw material supply, production process management, etc. in accordance with international quality The system standards are standardized to provide customers with satisfactory pre-sale, in-sale and after-sale services. Feel free to contact us anytime
| PROPERTY | CONCRETE WEIGHT COATING | ||||||
| Minimum Concrete Thickness | 25 mm (1.0") | ||||||
| Maximum Concrete Thickness | 150 mm (6.0") | ||||||
| Minimum Pipe Diameter | 254 mm (10") | ||||||
| Maximum Pipe Diameter | 1219.2 mm (56.0") Limited to maximum coating OD 60" | ||||||
| Minimum Pipe Length | 10.5 m (34.5") | ||||||
| Maximum Pipe Length | 26 m (85.3") | ||||||
DNV-OS-F101: Submarine Pipeline Systems - SAWL 245,SAWL290, SAWL320, SAWL360, SAWL415, SAWL 450, SAWL 485,SAWL 555.
ISO 21809-5:2010: Petroleum and natural gas industries - External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 5: External concrete coatings.
*ASTM C42 Standard Test Method for Obtaining and Testing Drilled Cores and Sawed Beams of Concrete
*ASTM C87 Test Methods for Effect of lmpurities in Fine Aggregate on Strength of Mortar BS 1881 Methods of Testing Concrete
*ASTM C642 Standard Test Method for Specific Gravity, Absorption, and Voids in Hardened Concrete
*BS 3148 Test Methods for Water for Making Concrete
*BS 4449 Material Specification for Carbon Steel Bars for Concrete Reinforcement
*BS 4482 Hard Drawn Mild Steel Wire for the Reinforcement of Concrete
*BS 4483 Specification for Steel Fabric for the Reinforcement of Concrete
