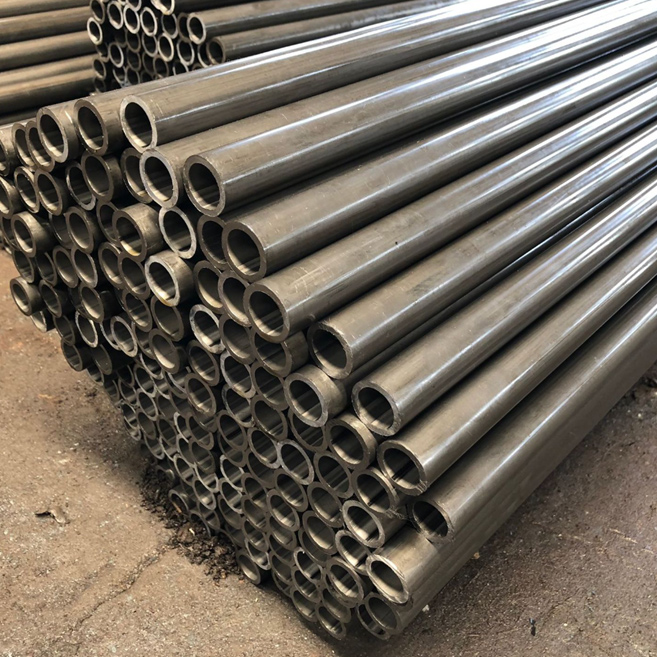

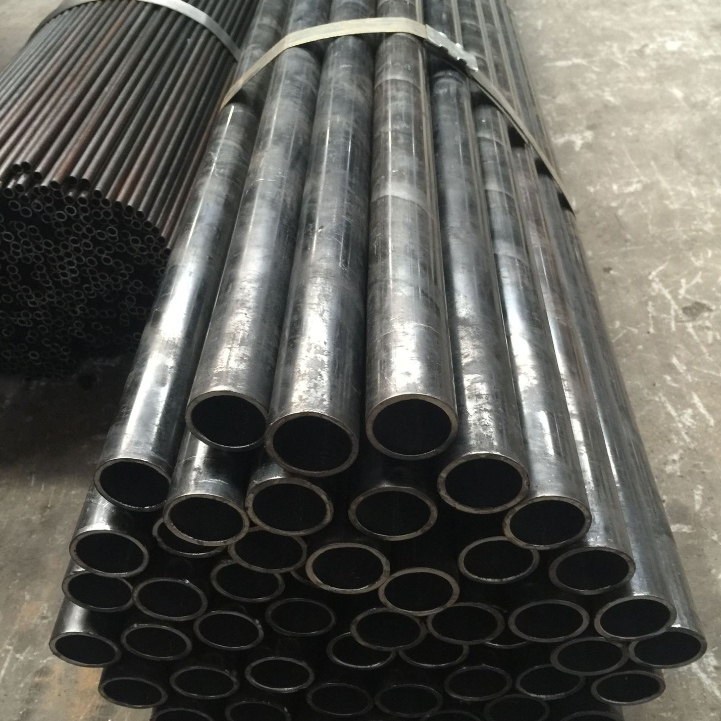

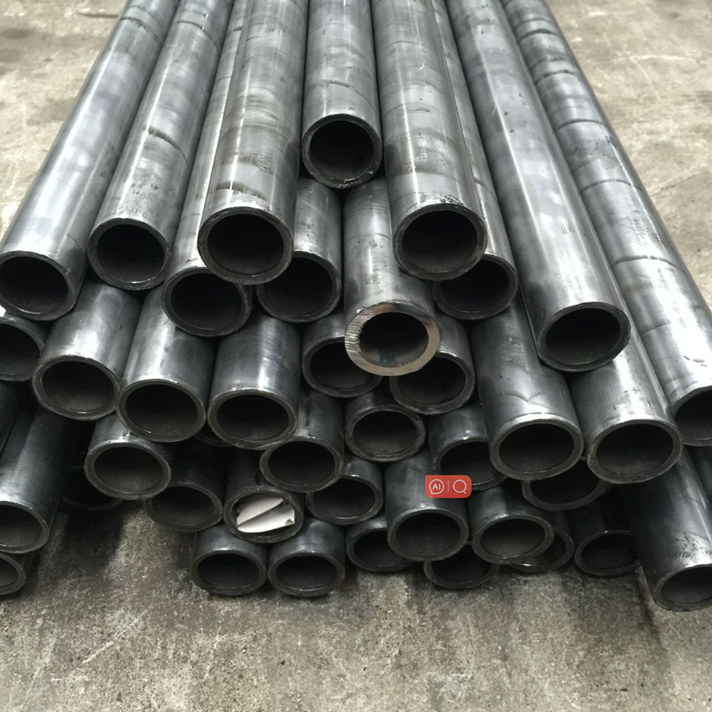

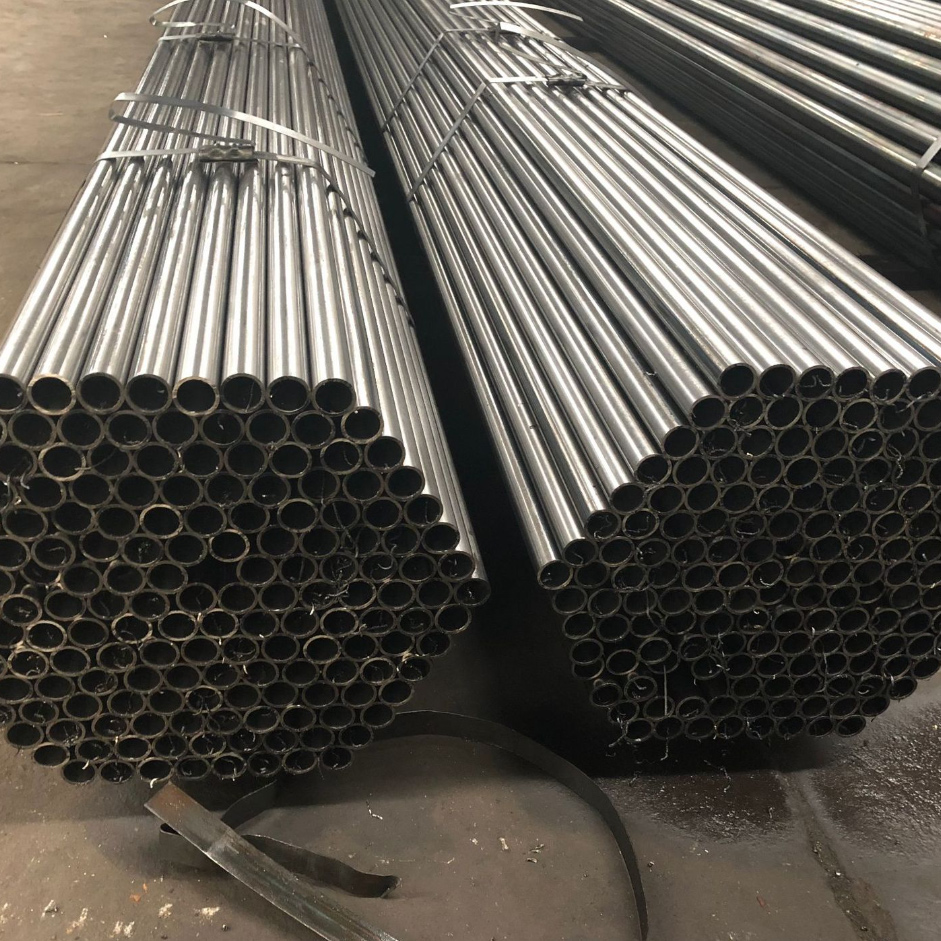

Cold Drawn Seamless Tube
Grades:
Carbon steel grades: SAE 1020, 1026, 1035; A 106 grade A, B, C; E 355, ST 52, ST 37.4, and so on.
Stainless steel grades: 304 / 304L, 316 / 316L, 316 Ti, 321/321H; 1.4301 /1.4307, 1.4401/1.4404, 1.4541, 1.4571;
Standards:ASTM A519, EN 10305-1, EN 10216-2. EN 10216-5. DIN 2391, DIN 1630. etc.
Size Range:OD:10 - 101 mm;Thickness: 1-10 mm Length:Up to 14 mtr
Cold Drawn Seamless Mechanical Tubing(CDS) is a cold drawn 1018/1026 steel tube which offers uniform tolerances,enhanced machinability and increased strenath and tolerances compared to hot-rolled products.
Usage:
1. Pipeline transportation of fluid or gas.
2. Mechanical parts in automobiles and heavy equipment;
3. Hydraulic equipment, such as hydraulic cylinders:
4. Heat exchanger and boiler tubing.
5. Structural components or agricultural components
| Oil & Gas | ||||||
| API | 5L | |||||
| API | 5CT | |||||
| IS | 1978 1979 | |||||
| Automotive industry | ||||||
| ASTM | A-519 | |||||
| SAE | 1010 1012 1020 1040 1518 4130 | |||||
| DIN | 2391 1629 | |||||
| BS | 980 6323(pt-v) | |||||
| IS | 3601 3074 | |||||
| Hydrocarbon process industry | ||||||
| ASTM | A-53 A106 A-333 A-334 A-519 | |||||
| BS | 3602 3603 | |||||
| IS | 6286 | |||||
| Bearing industry | ||||||
| SAE | 1026 1518 | |||||
| IS | 6631 | |||||
| DIN | 1629 | |||||
| Boiler,Heat Exchanger,Superheater & Condenser | ||||||
| ASTM | A-179 A-192 A-209 A-210 A-213 A-333 A-334 A-556 | |||||
| BS | 3059(pt-ⅰPt-ⅱ） | |||||
| IS | 1914 2416 11714 | |||||
| DIN | 17175 | |||||
| Railways | ||||||
| IS | 1239(pt-ⅰ），1161 | |||||
| BS | 980 | |||||
| Mechanical,Structural general Engineering | ||||||
| ASTM | A-252 A-268 A-269 A-500 A-501 A-519 A-589 | |||||
| DIN | 1629 2391 | |||||
| BS | 806 1775 3601 6323 | |||||
| IS | 1161 3601 | |||||
